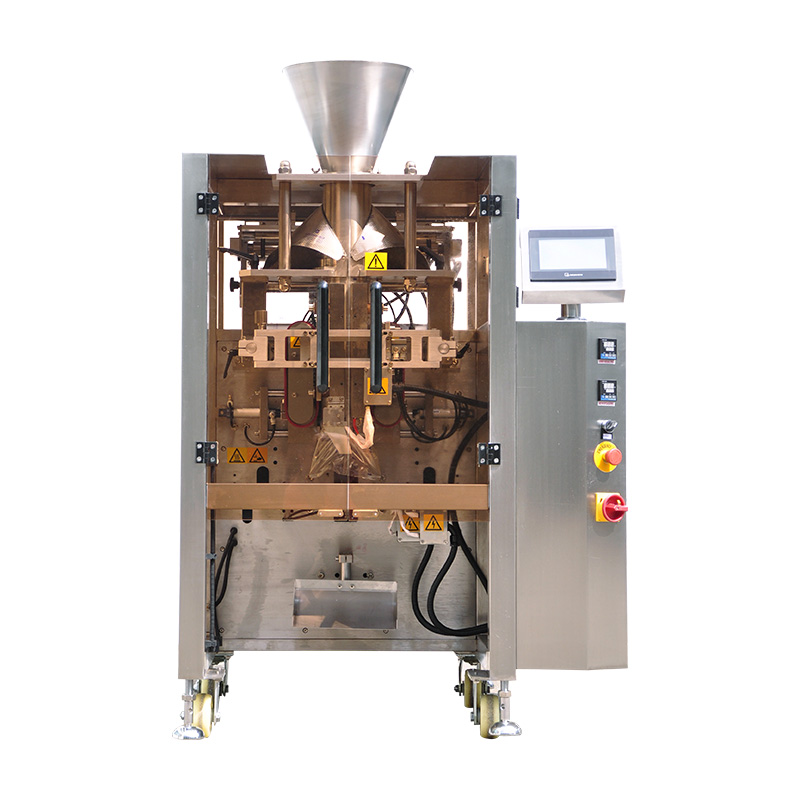

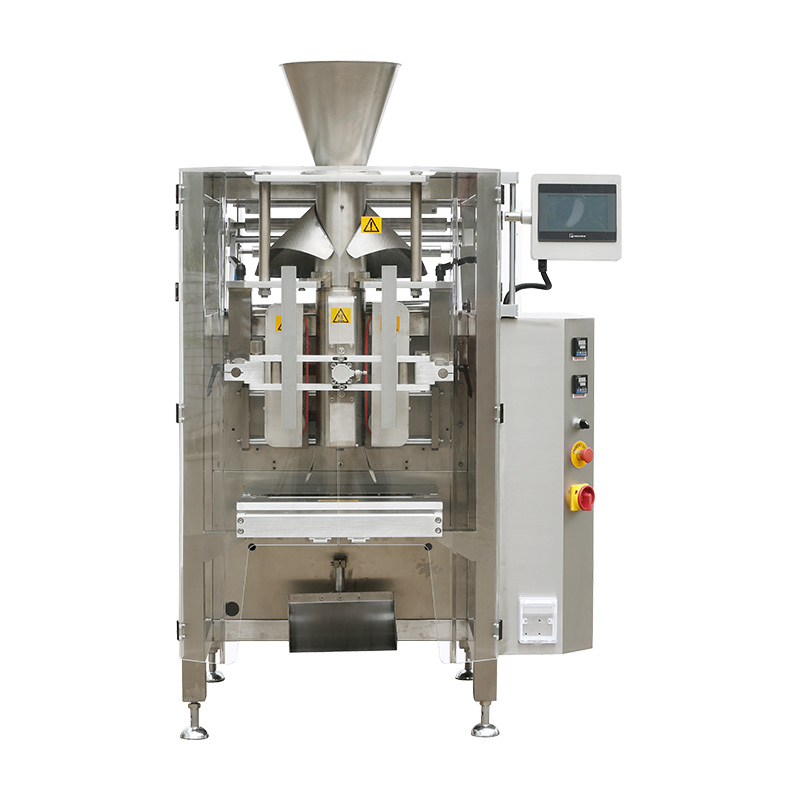

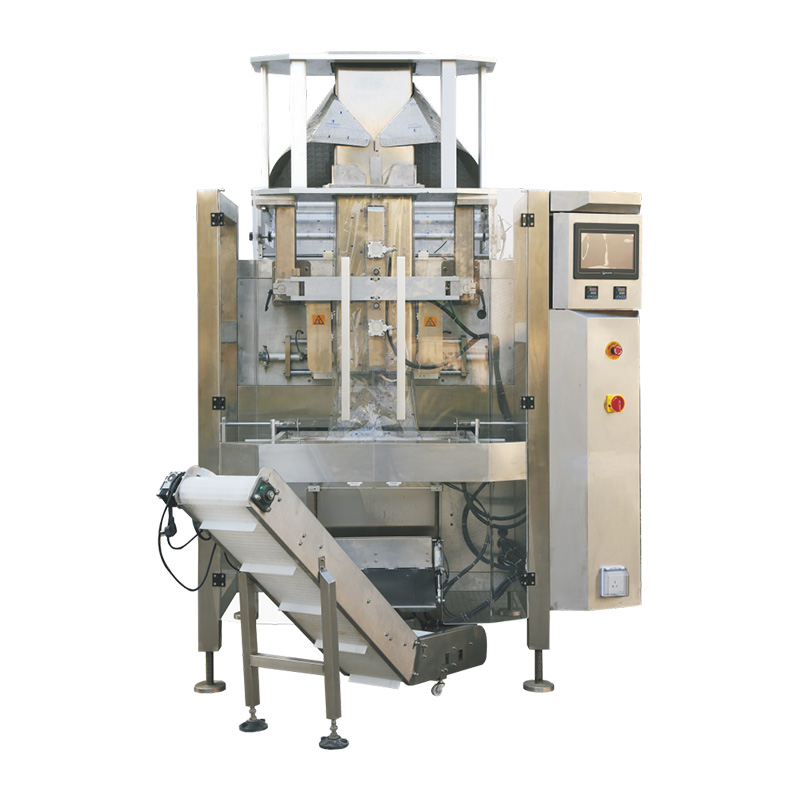

A vertical packaging machine is an automated system designed to form, fill, and seal bags from a single roll of flexible film. It is primarily used for packaging free-flowing products like snacks, powders, granules.
Specification:
Model | AT-4230 | AT-5235 | AT-6845 | AT-9060 | AT-1280 |
Film width | 140-420 mm | 180-520 mm | 220-680 mm | 560-900 mm | 800-1200 mm |
Bag length | 80-300 mm | 100-350 mm | 150-450 mm | 200-600 mm | 300-800 mm |
Bag width | 60-200 mm | 80-250 mm | 100-330 mm | 260-430 mm | 300-580 mm |
Film roll diameter | Max. 400 mm | Max. 400 mm | Max. 400 mm | Max. 400 mm | Max. 400 mm |
Packaging speed | 5-60 Bag/min | 5-50 Bag/min | 5-40 Bag/min | 5-20 Bag/min | 5-15 Bag/min |
Range of measurement | 50-1000ml | 100-1500ml | 300-2000ml | 1000-5000ml | 3000-8000ml |
Film thickness | 0.04-0.12 mm | 0.04-0.12 mm | 0.04-0.12 mm | 0.04-0.12 mm | 0.04-0.12 mm |
Power | 220V 50Hz 2.2Kw | 220V 50Hz 3Kw | 220V 50Hz 3.6Kw | 220V 50Hz 4.5Kw | 220V 50Hz 5Kw |
Machine size | (L)1315×(W)1023×(H)1343mm | (L)1502×(W)1070×(H)1470mm | (L)1702×(W)1340×(H)1709mm | (L)2008×(W)1684×(H)2643 mm | (L)2900×(W)2050×(H)3300 mm |
Machine weight | About 500Kg | About 600Kg | About 900Kg | About 1200Kg | About 1400Kg |
Applications:
Suitable for automatic packaging of various kinds of leavened food,candies, peanuts, seeds and such materials in grain or piece as well as powder like milk powder, washing powder, starch, etc.
Our Features:
(1) New design with perfect fashion, more compact structure, more advanced technology.
(2) Use Panasonic PLC control system, color touch screen, easy operation, user-friendly and easy maintenance.
(3) Use Panasonic servo-motor and control for film transporting system; high-precision mark sensor for accurate positioning. Ensure the film to be fed and fold perfectly hence makes perfect bags.
(4) New type film-loading device to make it more uniform and stable.
(5) New design with electric cabinet, the angle of screen can be rotated for better adapt to the operator, with safety door to meet the European standard.
(6) Automatic correct function, save time, labor and film, the operation more intelligent.
(7) With many kinds of auto warning protection functions to minimize errors.
(8) Able to produce various kinds of bags, like pillow bag, gusset bag, hang hole bag, linked bag, etc.
(9) Types of sealing can be: horizontal stripes, vertical stripes, inclined stripes
(10) Bags type:
Optional device:
●Nitrogen gas flushing
●Hole punch device
● Chain bag device
● Tear notch device
● Air expeller
●Gusset device(Mechanical)
● Bag support
●PE sealing system
● Static eliminator
● Film tracking device
