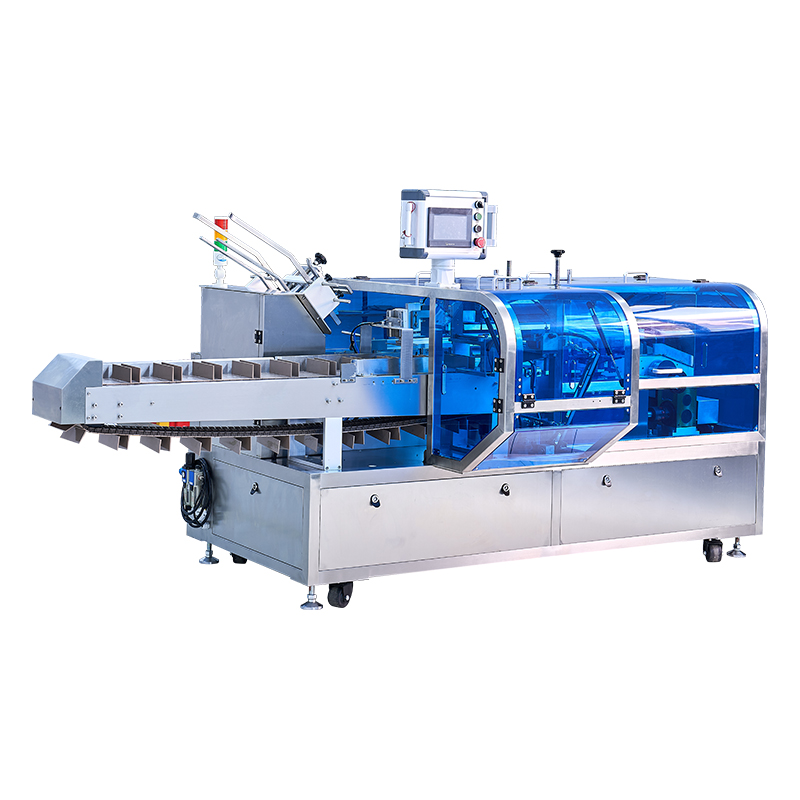

Automatic Cartoning Machine

Specification:

Model	CN-A180	CN-A230	CN-A330
Carton length	80-180 mm	130-230 mm	150-330 mm
Carton width	40-92 mm	50-200 mm	80-200 mm
Carton height	20-60 mm	20-90 mm	40-110 mm
Paper requirements	250-400 Grey, White card	250-400 Grey, White card	250-400 Grey, White card
Packaging rate	15-100 Bag/min	15-60 Bag/min	15-50 Bag/min
Use air supply	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa
Air consumption	15-60L/min	15-60L/min	15-60L/min
Power	220V 50Hz 0.75 Kw	220V 50Hz 0.75Kw	220V 50Hz 0.75Kw
Machine size	(L)2430×(W)1370 ×(H)1550 mm	(L)3276 ×(W)1420×(H)1580 mm	(L)3350 ×(W)1530×(H)1580 mm
Machine quality	About 800Kg	About 1000Kg	About 1200Kg

Our Features:

1. Automatic packaging machine integrating: box opening, packing, folding and glue-sealing, or automatic buckling.

2. New design, bright appearance, compact structure, more advanced technology.

3. With Mitsubishi PLC control system, User-friendly. HMI displays speed, quantity.

4. Progra mmable control with intuitive operation for maximum efficiency

5. Positioning detecting using Panasonic photoelectric sensor to ensure high-precision. Hence ensure high quality box-packaging.

6. If there is no products feeding to the machine, the machine will not pick up empty box- hence to avoid empty packages.

7. A variety of automatic alarm protection function to minimize loss.

Application:

Food industry like snacks, chocolates, tea bags, biscuits, and ready-to-eat meals. Protein bars; Cosmetics & personal care like skin cream, shampoo bottles, perfumes, soaps, makeup items; Cunsumer goods like electronic accessories, toys, stationery, cables; Chemical and household products like detergent pods, cleaning suppliers; medical devices and hardware components, ect.
