Filling and Sealing Line-For Cans/Tins/Jars/Cups/Trays

Specification:

Equipment Composition:

Application:

For high-speed, accurate packaging of dry, free-flowing solid products, include:

Pharmaceuticals: Flower teas, capsules, hard candies (lozenges).

Pet Food: Dry kibble, biscuits, training treats.

Snacks & Confectionery: Cookies, crackers, biscuits, hard candies, mixed nuts, chocolate pieces, cereal clusters.

Primary Packaging Formats: Perfect for filling into cans, cups, tubs, trays.

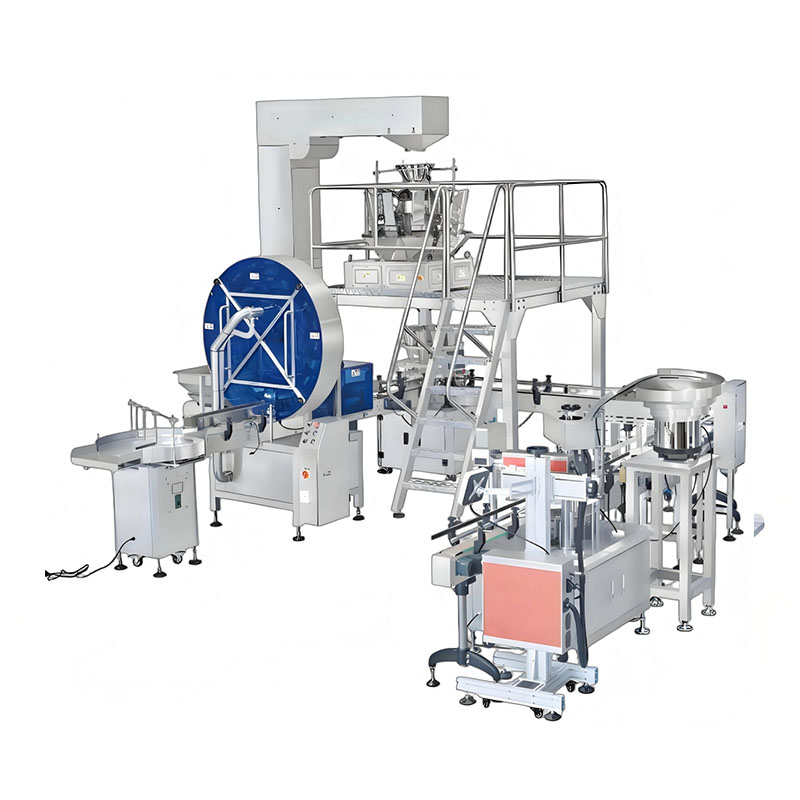

This is a fully integrated, high-precision automated packaging line designed for dry solid products (such as pet food, nuts, crackers, or candy) requiring stringent hygiene and weight accuracy. This turnkey system seamlessly executes the entire process from empty container to finished, coded package with minimal operator intervention.

System Workflow:

1. Cans In-feed Table: Automatically supplies and orients empty containers, ensuring a steady and orderly flow into the system.

2. UV Sterilization Cleaning Machine: Passes containers under intense UV light, effectively eliminating surface microorganisms to ensure high hygiene standards prior to filling.

3. Z-shape Elevator: Gently lifts and transfers the bulk products like nuts, candies, rice etc, onto the weighing machine.

4. Multihead Weigher: The precision core of the line. It performs rapid, computer-calculated weight combinations to deliver the exact target weight of product for each container with minimal giveaway.

5. Platform: Provides a stable structural base housing the control system and supporting the weighing and filling operations.

6. Rotary Type Filling Equipment: Receives the precisely weighed portion from the weigher and cleanly discharges it into containers passing underneath on a rotating carousel.

7. Weight Checker: An in-line scale that automatically verifies the weight of each filled container. Any under or overweight units are immediately rejected, guaranteeing 100% weight compliance.

8. Capping Machine: Automatically applies and tightens lids (screw caps, press-on lids, etc.) onto the containers with consistent torque, ensuring a secure seal.

9. Fiber Laser Coding Machine: Marks each container with permanent, high-quality codes (like production date, batch number, or logo). This method is non-contact, consumable-free, and highly resistant to abrasion.

Value Delivered:

1. Complete Automation & Labor Savings: The integrated line drastically reduces manual handling at every stage, lowering labor costs and minimizing human error.

2. Assured Hygiene & Quality Control: UV sterilization ensures container cleanliness, while the 100% in-line weight check guarantees every single package meets strict weight specifications, protecting your brand reputation and compliance.

3. Maximized Efficiency & Product Yield: Achieves consistent throughput with near-zero product giveaway thanks to precision weighing and automatic rejection of non-conforming units, leading to significant material cost savings.

4. Reliable Traceability & Professional Output: The fiber laser provides indelible coding for complete traceability. The system delivers a securely sealed, professionally presented final product ready for retail.

Ready to enhance your dry products packaging? Contact Autron Technologies for a tailored solution.
