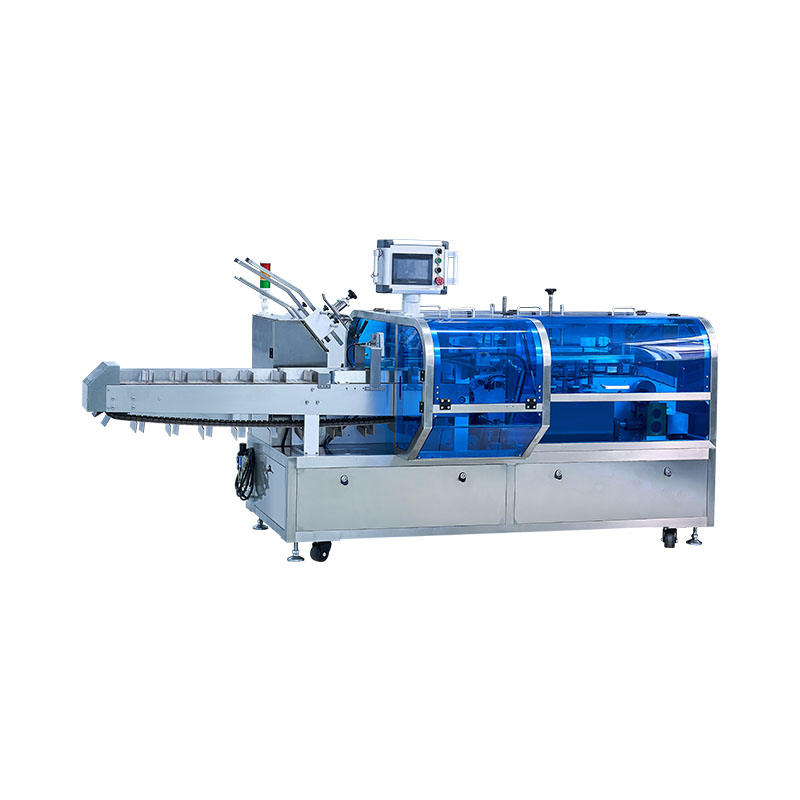

An automatic cartoning machine is a high-speed system that automates the process of inserting products and instructions into pre-folded cartons. It performs key functions including carton erection, product loading, and end-flap closing and sealing. This machine significantly boosts packaging line efficiency while reducing labor costs, and is widely used in industries such as pharmaceuticals, food, and cosmetics.
Specification:
Type | JR-240Z（ Insert box） | JR-240Z（ Spray glue） |
Carton length | 70-240 mm | 70-240 mm |
Carton width | 50-200 mm | 50-200 mm |
Carton height | 20-90 mm | 20-90 mm |
Paper requirements | 250-400 Grey, White card | 250-400 Grey, White card |
Packaging rate | 15-60 Bag/min | 15-60 Bag/min |
Use air supply | 0.5-0.7Mpa | 0.5-0.7Mpa |
Air consumption | 15-60L/min | 15-60L/min |
Power | 220V 50Hz 0.75 Kw | 220V 50Hz 4.5Kw |
Machine size | (L)3276×(W)1440 ×(H)1580 mm | (L)2430 ×(W)1370×(H)1580 mm |
Machine quality | About 1000Kg | About 1000Kg |
Our Features:
1. Automatic packaging machine integrating: box opening, packing, folding and glue-sealing, or automatic buckling.
2. New design, bright appearance, compact structure, more advanced technology.
3. With Mitsubishi PLC control system, User-friendly. HMI displays speed, quantity.
4. Progra mmable control with intuitive operation for maximum efficiency
5. Positioning detecting using Panasonic photoelectric sensor to ensure high-precision. Hence ensure high quality box-packaging.
6. If there is no products feeding to the machine, the machine will not pick up empty box- hence to avoid empty packages.
7. A variety of automatic alarm protection function to minimize loss.
Optional equipment:
1. Disordered materials sorting system, feeding line, automatic printing, scrap removal, spray glue sealing box, etc.
2.It can be used with a variety of equipment linkage: material line, manipulator, Three-dimensional packaging machine, Vertical packaging machine, Horizontal packaging machine, Filling machine, Labeling machine, Inkjet machine and other equipment.
Application:
Ideal for high-speed packaging across industries:
1. Pharmacy: Tablets, syringes, medical devices
2. Cosmetics: Creams, lipsticks, shampoo sachets, perfume
3. Food: Chocolates, snacks, tea bags, coffees, pizza, Protein powder stick packets
4. Daily Goods: Soaps, batteries, wipes
5. Electronics: Small components, connectors, cables
6. Hardware: Screws, tools, DIY kits
Suitable for box-shapes like Insert boxes, Spray glue seal boxes.
