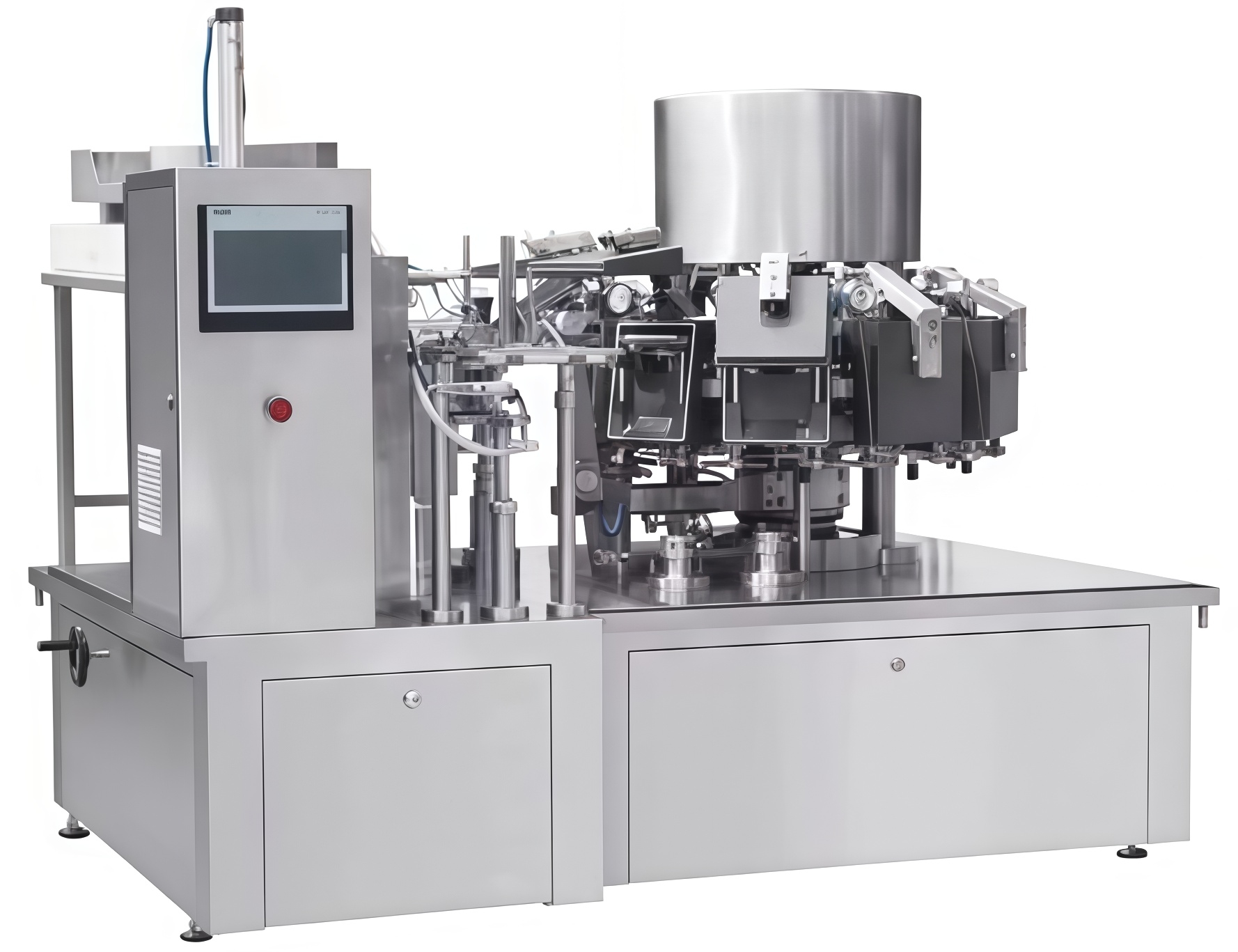

The ZK120/ZK160/ZK200 series is a fully automatic rotary vacuum packaging solution, purpose-built for food products requiring airtight, shelf-stable packaging. Featuring a simplified cam mechanism and German-made components, it delivers reliable, high-speed operation with minimal waste. Ideal for marinated meats, tofu, jerky, and ready meals, this system ensures consistent vacuum sealing to extend shelf life. It supports various pouch types and can be customized with optional feeders, weighers, and detectors to meet your exact production needs.
The ZK120 / ZK160 / ZC-ZK200 series is a high-performance, fully automatic rotary vacuum packaging system designed for food products requiring airtight, shelf-stable packaging. Built on a simplified single-axis cam mechanism, this machine delivers reliable, high-speed operation while minimizing film waste and maintenance costs.
Adopts a new integrated simplified single-axis matching inner wheel groove cam structure for stable, long-term operation.
The heat sealing station only activates when the bag is properly filled, eliminating waste from empty or unsealed pouches.
Air cylinder-controlled sealing knife ensures consistent, even heat sealing pressure for leak-proof results.
Features automatic metering, filling, and sealing, with a bagless auto-alarm system to prevent downtime and errors.
Mechanical cam control ensures high precision and low maintenance, with wear-resistant gears for long service life.
Most key components are imported from Germany, ensuring durability and stable performance in continuous production environments.
Up to 60 bags/min (speed depends on bag material, size, and product).
Dual-stage vacuum system removes air effectively, preserving freshness, preventing oxidation, and extending shelf life.
Supports aluminum foil bags, four-side sealed bags, paper-plastic laminated bags, and more.
304 stainless steel construction, easy-to-clean design, meeting strict food processing hygiene standards.
Intelligent anti-waste design, minimal downtime, and long-lasting components reduce total cost of ownership.
Check weigher (for weight verification)
Metal detector (for foreign object detection)
Vibration feeder (for automated product feeding)
Rotary table (for organized finished pouch collection)
Nitrogen generator (for modified atmosphere packaging)
Air compressor + air storage tank
Z-type bucket conveyor
Multi-head weigher (10-32 heads)
Supporting platform
Cooked foods: marinated meat, braised pork ribs, tofu products, jerky, pickled vegetables
Ready meals and pre-packaged foods
Snacks and specialty foods requiring long shelf life
| Item | ZK120 | ZK160 | ZK200 |
|---|---|---|---|
| Packing Speed | Max 60 bags/min | Max 60 bags/min | Max 60 bags/min |
| Bag Size (L×W) | 80-180 × 50-120 mm | 80-240 × 80-160 mm | 150-300 × 120-200 mm |
| Applicable Bags | Aluminum foil, four-side sealed, paper-plastic laminated bags | Same | Same |
| Weighing Range | 10g-200g | 15g-500g | 20g-1000g |
| Accuracy | ±0.5-1.0% | ±0.5-1.0% | ±0.5-1.0% |
| Max Bag Width | 120mm | 160mm | 200mm |
| Air Consumption | 0.8MPa 0.3m³/min | 0.8MPa 0.3m³/min | 0.8MPa 0.3m³/min |
| Total Power | 10KW 380V 50/60Hz | 10KW 380V 50/60Hz | 10KW 380V 50/60Hz |
| Dimension (L×W×H) | 2100×1400×1700 mm | 2500×1550×1700 mm | 2600×1900×1700 mm |
| Weight | 2000Kg | 2200Kg | 3000Kg |
