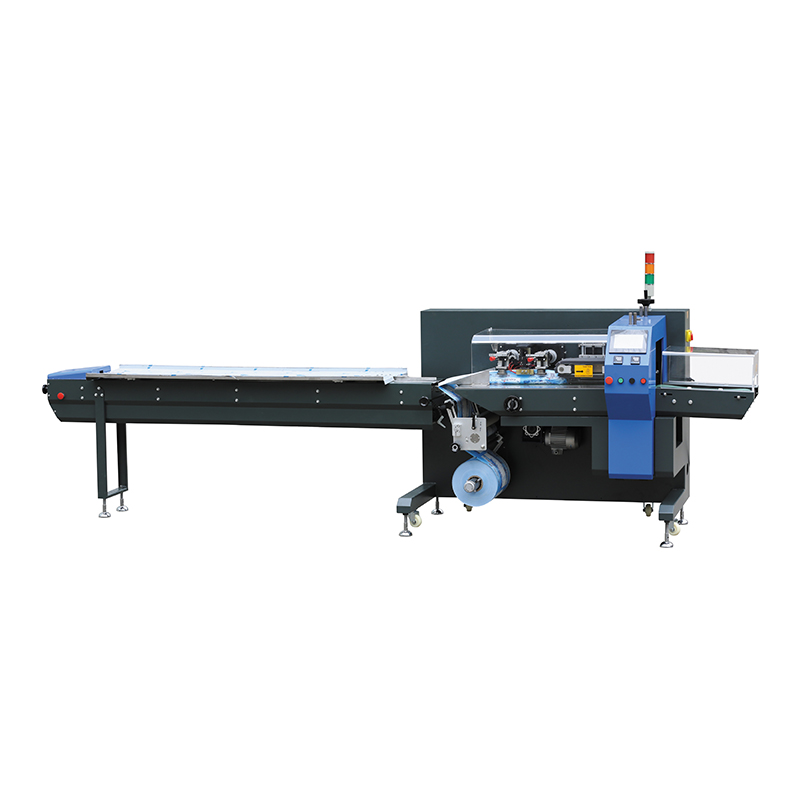

A flow packaging machine, also commonly known as a horizontal form-fill-seal (HFFS) machine, is a high-speed automated system used to package a vast array of products. Key advantages of flow wrappers include their exceptional speed, flexibility in handling various product shapes and sizes, and the ability to create a secure, visually appealing package with excellent product protection.
Applications:
Suitable for packaging soft, strip and unorganized objects like towels, tissues, soft noodles, crispy sticks, egg rolls, sausages, fish, ice-lollies, soft candies. fresh fruits and so on.
Our Features:
1. Machine use 3 sets of servo-motor to control. Adjustment on the bag length can respond fast, no need to produce empty bags after change bag length. Hence to save film and higher the packaging efficiency.
2. with the function "Stop automatically when lack of products": the film-feeding, sealing and cutting will stop when there is no products, and then re-start automatically when there is products. Hence avoid empty bags.

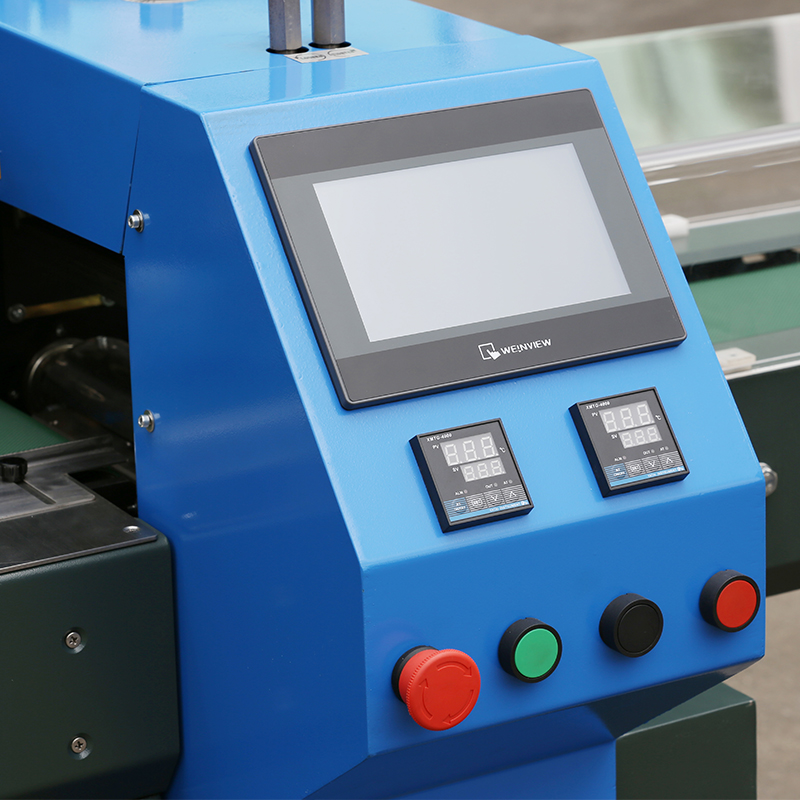

3. Trouble-shooting function, display the trouble clearly.
4. High sensitivity photoelectric color code tracing, sealing and cutting position can be set digitally and precisely.
5. PID control temperature independently with high precision, suitable for many different type of packaging materials.

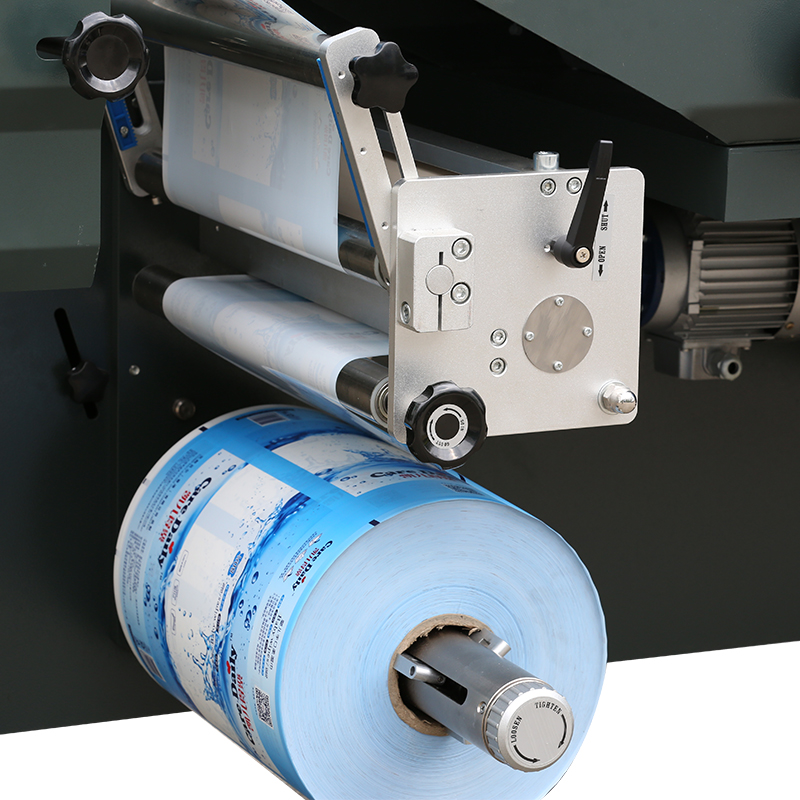

6. Down film design, with gusset device to make higher standard bag-shape.
7. Self-adjust products-distance, to avoid wasting film and stickness to the cutter.
8. Machine motion design is simple and reliable, easy for maintainence.
9. All the control are done by software, easy for adjustment and technology-upgrading.
Specifications:
Type | AS-350X | AS-450X | AS-600X |
Film width | Max. 350 mm | Max. 450 mm | Max. 600 mm |
Bag length | 65-280 mm | 100-450 mm | 100-450 mm |
Bag width | 50-160 mm | 50-180 mm | 90-220 mm |
Product height | 10-55 mm | 10-80 mm | 10-80 mm |
Film roll diameter | Max. 320 mm | Max. 320 mm | Max. 320 mm |
Packaging speed | 30-300 Bag/min | 30-120 Bag/min | 30-120 Bag/min |
Power | 220V 50/60Hz 2.8Kw | 220V 50/60Hz 2.8Kw | 220V 50/60Hz 3.0Kw |
Machine size | (L)4045×(W)902×(H)1225 mm | (L)4245×(W)1002×(H)1335 mm | (L)4245×(W)1152×(H)1335 mm |
Machine weight | About 620Kg | About 750Kg | About 800Kg |
Remarks | Optional gusset device | ||
