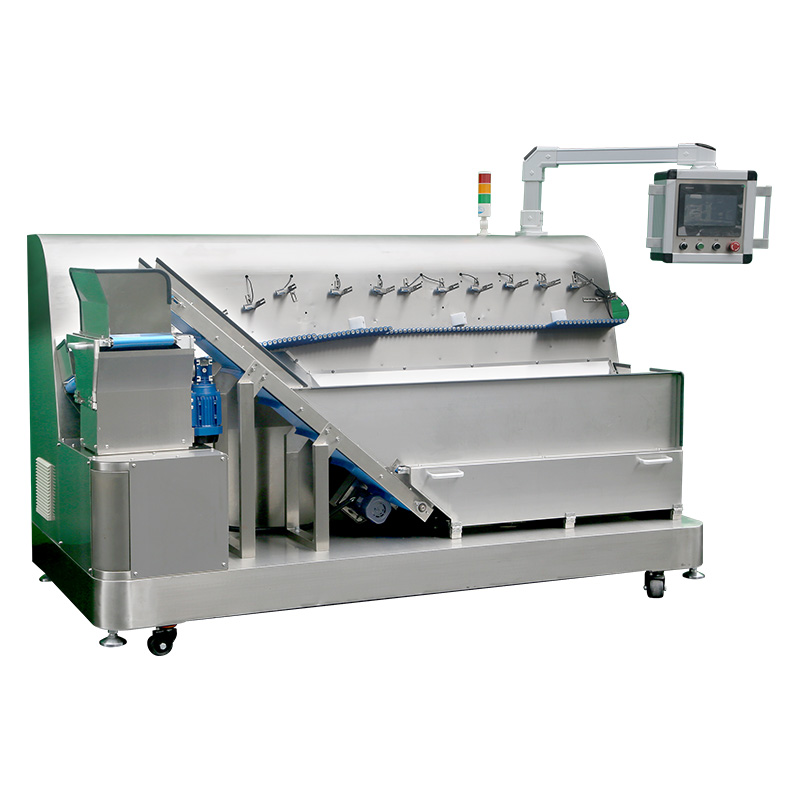

This system revolutionizes material handling by eliminating the need for a traditional, separate feeder. It intelligently sorts, orients, and stacks disordered materials automatically using multi-servo driven rollers, creating a seamless, ordered flow directly into downstream cartoning or packaging machines. Its integrated design combines storage, feeding, and sorting into a single, compact, and visually appealing unit.
Key Advantages
1. Eliminates Manual Sorting & Reduces Labor
Achieves full automation from bulk disordered materials to orderly arrangement, significantly cutting labor costs and human intervention.
2. Integrated & Space-Saving Design
Combines storage, feeding, and sorting functions into one streamlined machine with a simple structure and modern aesthetics, optimizing your factory layout.
3. Intelligent Servo-Driven Control

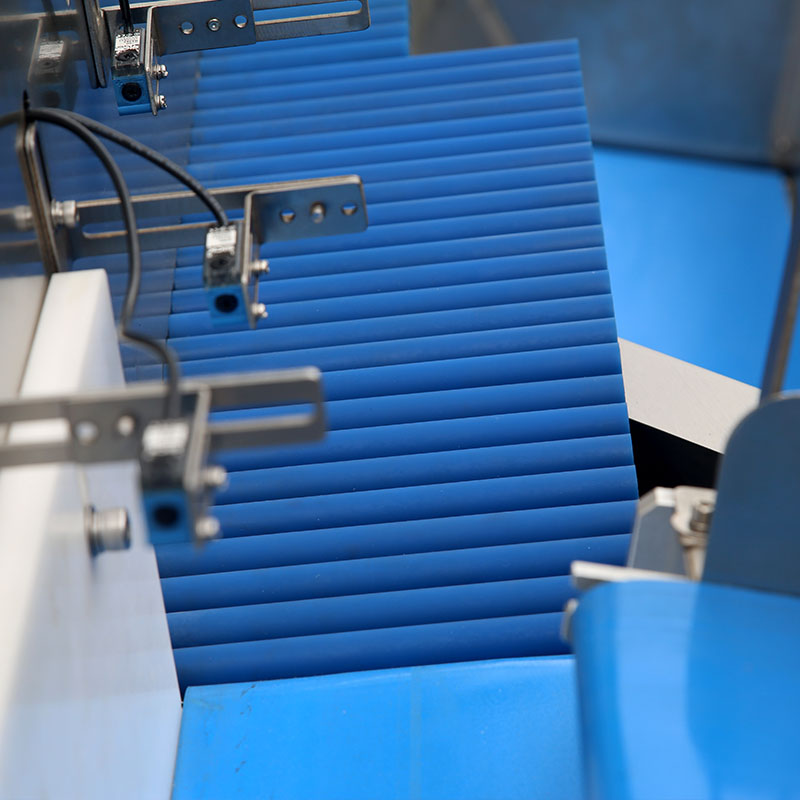

Multi-servo roller technology ensures gentle, precise, and rule-based material dispersion, sequencing, and stacking for flawless handling.
4. Future-Proof Flexibility & Scalability

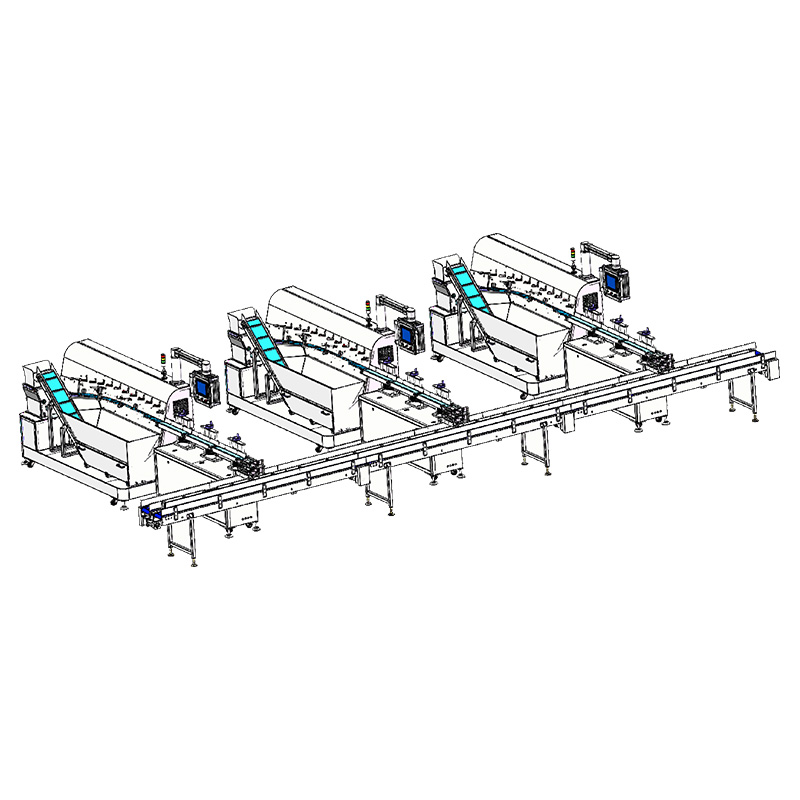

Capable of multi-unit configuration for large-scale production lines and can be equipped with optional machine vision for product turning and flipping, ensuring perfect orientation.
5. Reliable Operation with Minimal Downtime
Features imported sensors for accurate positioning and multiple auto-alarm protection functions to safeguard your production and minimize losses.
6. User-Friendly PLC Control
Manage and monitor the entire process effortlessly through an intuitive HMI touchscreen, allowing for programmed control with digital speed and quantity display.
Specification:
Type | DCL-300 |
Product length | 50-160 mm |
Product width | 20-120 mm |
Output height to ground | 1000 mm |
Material handling speed | Max.300 car |
Power specification | 220V50Hz 5.5Kw |
Machine size | (L)2070X(W)950X(H)1580mm |
Machine weight | About 350Kg |
