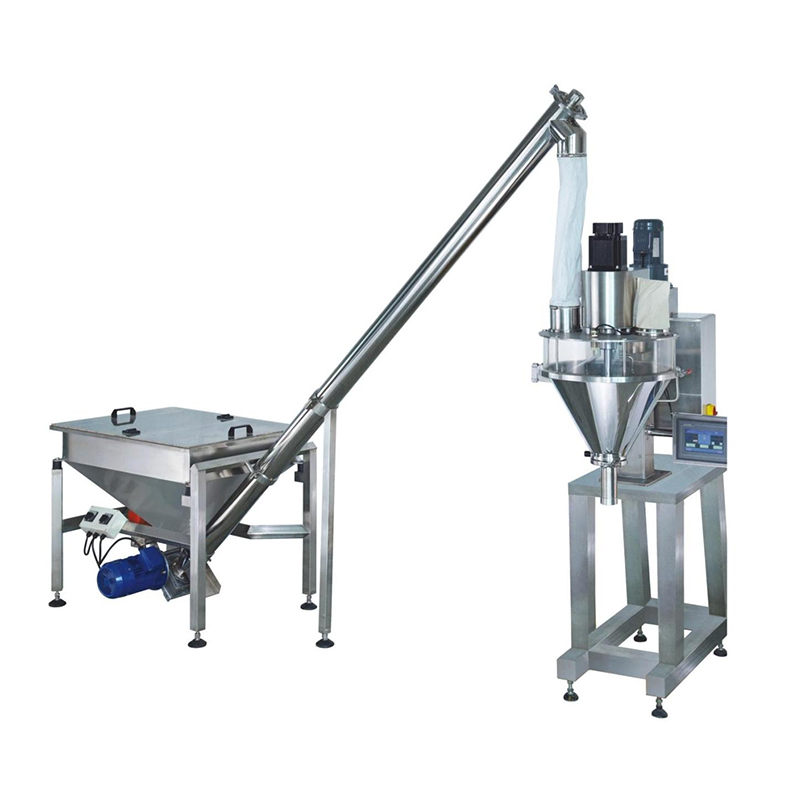

This is an automated solution designed for precise and efficient packaging of powdered products. Its core component is a rotating helical screw (the auger) that accurately measures and dispenses a specific volume or weight of powder into packages or containers. This system is ideal for products, as it minimizes dust, ensures consistent fill levels, and maintains high hygiene standards.
Applications:
1. Suitable for packaging of powder materials such as milk powder, cocoa powder, ice cream powder, and flour. This system includes: material feeding, dosing, bags making, sealing, printing, and counting in one machine.

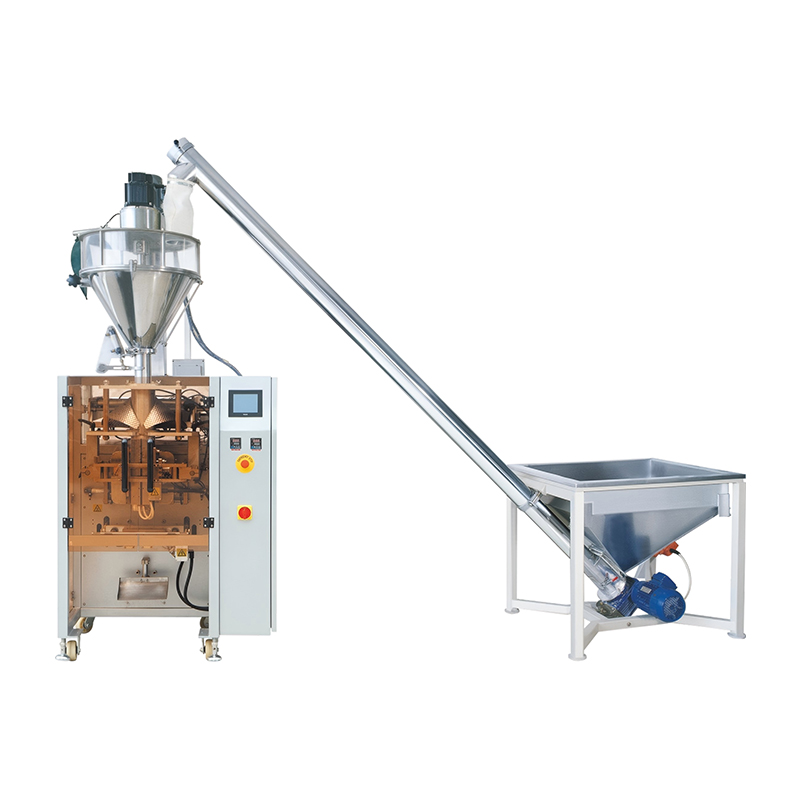

2. It can combined with: AT or ABDP series main machine, screw metering machines, screw feeding conveyor, product conveyor
Our Features:
1. Precision Filling: Delivers highly accurate and consistent doses by weight or volume.
2. Dust Control: Its enclosed design minimizes product loss and maintains a clean environment.
3. Gentle Action: The auger's rotation prevents product damage like crushing or separation.
4. Quick Changeover: Interchangeable parts allow for fast switching between different products.
5. High-Speed Automation: Seamlessly integrates into packaging lines for efficient production.
6. Simple Operation: User-friendly digital controls allow for easy setup and monitoring.
Specifications:
Name | Auger Filler |
Maximum weight | 5kg |
Maximum diameter screw | 80 mm |
Weighing accuracy | ±1% |
Weighing speed | 50 bags/minute |
Program set | 10 |
Machine sizes | 800(L)×580(W)×2080(H) |
Packaging machines | AT-4230 | AT-5235 | AT-6845 |
Film width | 140-420 mm | 180-520 mm | 220-680 mm |
Bag length | 80-300 mm | 100-350 mm | 150-450 mm |
Bag width | 60-200 mm | 80-250 mm | 100-330 mm |
Film roll diameter | Max. 400 mm | Max. 400 mm | Max. 400 mm |
Packaging speed | 5-60 Bag/min | 5-50 Bag/min | 5-40 Bag/min |
Range of measurement | 50-1000ml | 100-1500ml | 300-2000ml |
Film thickness | 0.04-0.12 mm | 0.04-0.12 mm | 0.04-0.12 mm |
Power | 220V 50Hz 2.2Kw | 220V 50Hz 3Kw | 220V 50Hz 3.6Kw |
Machine size | (L)1315×(W)1023×(H)1343mm | (L)1502×(W)1070×(H)1470mm | (L)1702×(W)1340×(H)1709mm |
Machine weight | About 500Kg | About 600Kg | About 900Kg |
