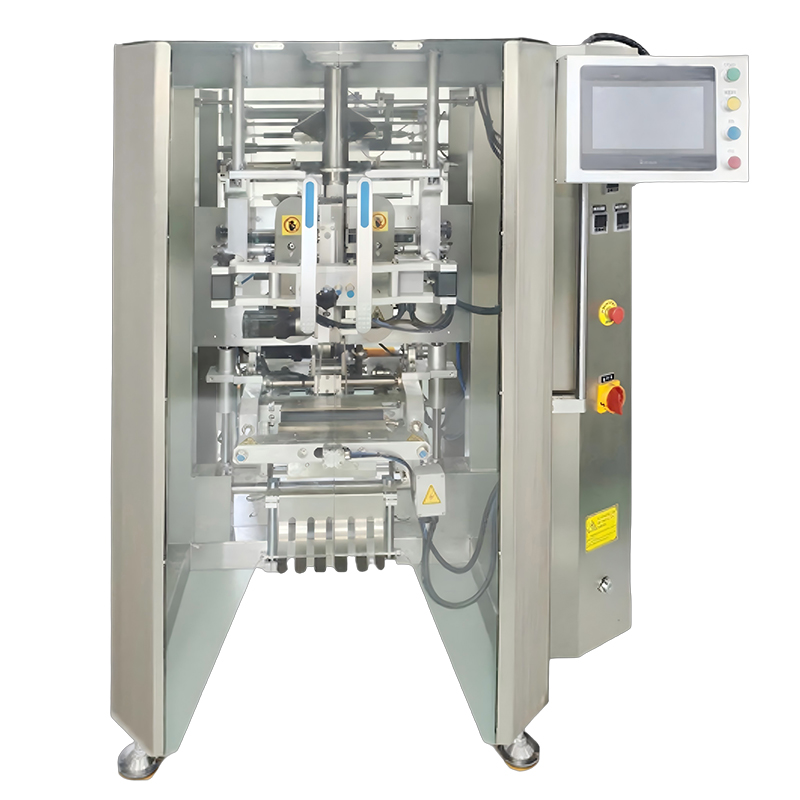

Our High-Speed Vertical Packaging Machine represents the pinnacle of automation engineering, designed to maximize your production line's output and efficiency. Unlike conventional packaging systems, our machine utilizes a revolutionary continuous-motion sealing process. The transverse seal jaws and cutter move in a reciprocating (up-and-down) motion, allowing for non-stop film feeding and sealing. This eliminates the stop-and-start cycle of standard machines, enabling true high-speed operation.
Our Core Technological Advantage: 5-Servo Synchronized Drive
While most competitors rely on a standard 4-servo motor configuration, we have integrated a superior 5-Servo Motor Drive System for unparalleled control and performance. This extra servo motor provides independent, precise command over every critical movement:
Film Pulling
Transverse Sealing
Longitudinal Sealing
...and other integrated motions.
This advanced 5-servo design allows for instantaneous adjustments, drastically reduces mechanical stress, and ensures perfect synchronization at high velocities, resulting in a significant leap in packaging speed, bag consistency, and overall system stability.
Key Features & Benefits
1. True High-Speed Operation
Experience continuous-motion packaging that dramatically outperforms standard intermittent systems, pushing your productivity to new heights.
2. Superior 5-Servo Control
Gain finer control, smoother operation, and higher reliability with our exclusive multi-servo architecture. This means faster response to length changes, less film waste, and a cleaner, more precise seal.
3. Premium Industrial Components
We guarantee longevity and consistent performance by exclusively using top-tier international brands. The entire system is powered by a Panasonic motion controller and servos, with precision components from SMC (Japan) and SICK (Germany), ensuring world-class reliability.
4. Uncompromising Sealing Quality
The independent servo control of both transverse and longitudinal seals, combined with robust jaws, creates a flawless, hermetic seal every time—even at maximum operating speeds.
5. User-Centric Intelligent Control
Operate and monitor the entire system with ease through the intuitive Weintek color touchscreen. Streamline changeovers, access real-time data, and manage troubleshooting effortlessly.
Options: It is an option to make this model as a twin packaging machine.
Specification:
Type | DC-4230G |
Film thickness | 0.04-0.12mm |
Packaging speed | 120-150 Bags/min. |
Air consumption | 0.8Mps，0.8m³/min |
Film width | 220-420mm |
bag type | Pillow bag, stand-up bag, hole punching bag |
bag size | (W)100～200mm×(L)80～300mm |
Dimensions | （L)1700×(W)1480×(H)1620mm |
Power | 单相220V ±5% 50～60HZ 6-7KW |
Package material | POPP/CPP ， POPP/VMCPP ，CPP/PE， Ect |
Alarm | 1.No bag and no material alarm and shutdown. 2.Equipment overload alarm. 3.Low temperrate, no ribbon alarm. |
Applications:
Suitable for automatic packaging of various kinds of leavened food,candies, peanuts, seeds and such materials in grain or piece as well as powder like milk powder, washing powder, starch, etc.
