This series of multihead weighers are designed to dose several different products into the same package. The weight of each products can be set independently. This series contents :

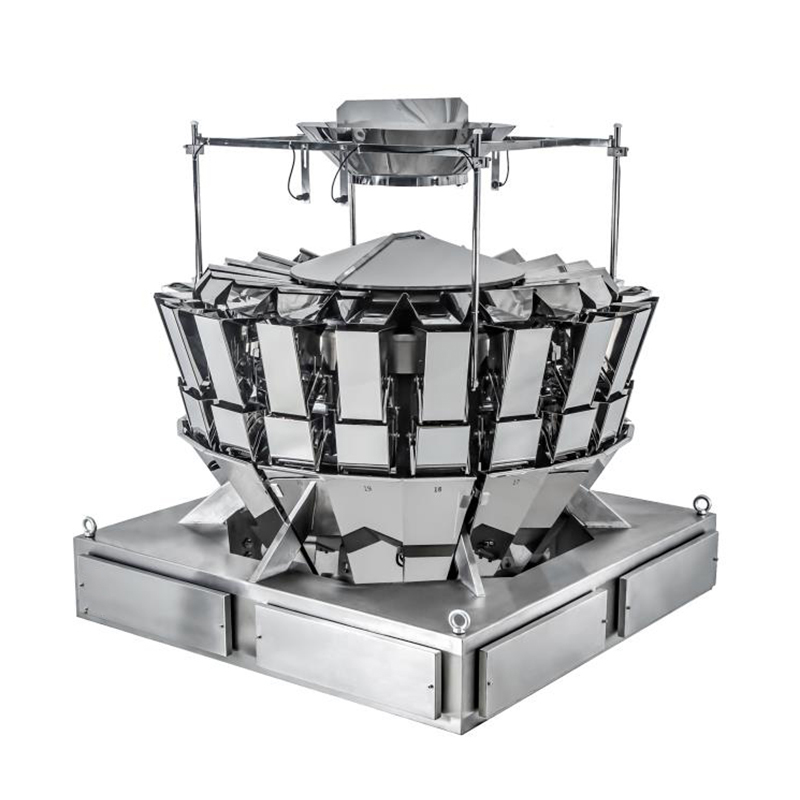

-16, 20head to mix 2 ingredients in 1 pack

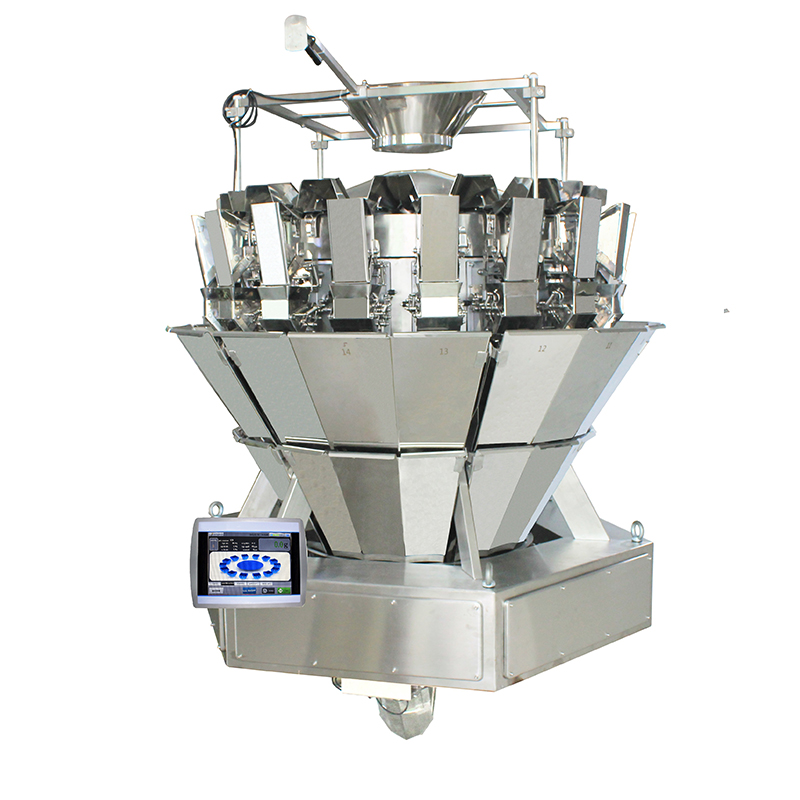

-18head weigher to mix 3 in 1,

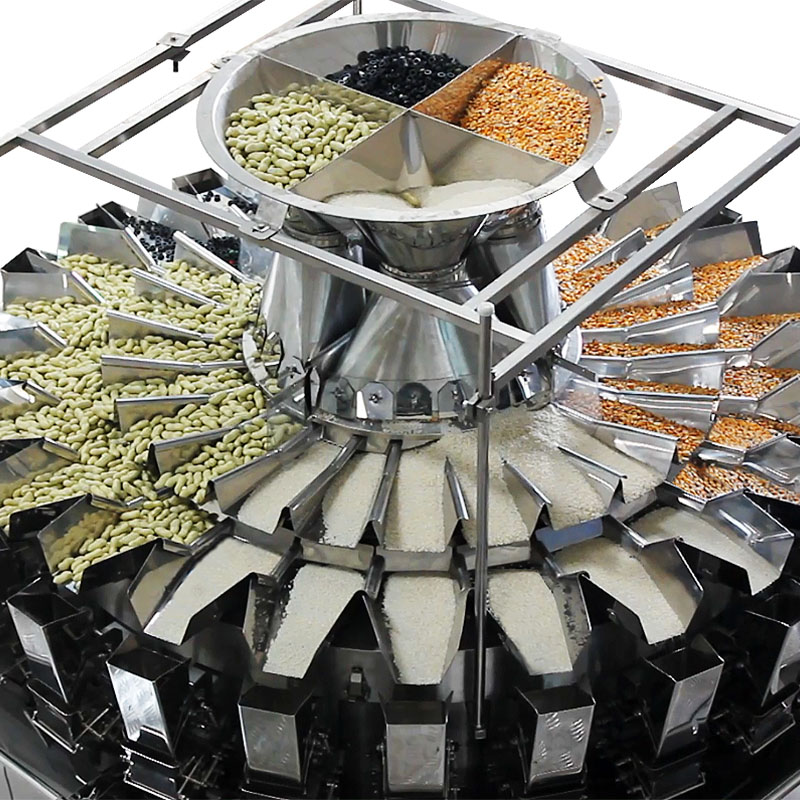

-24head weigher to mix 4 in 1,

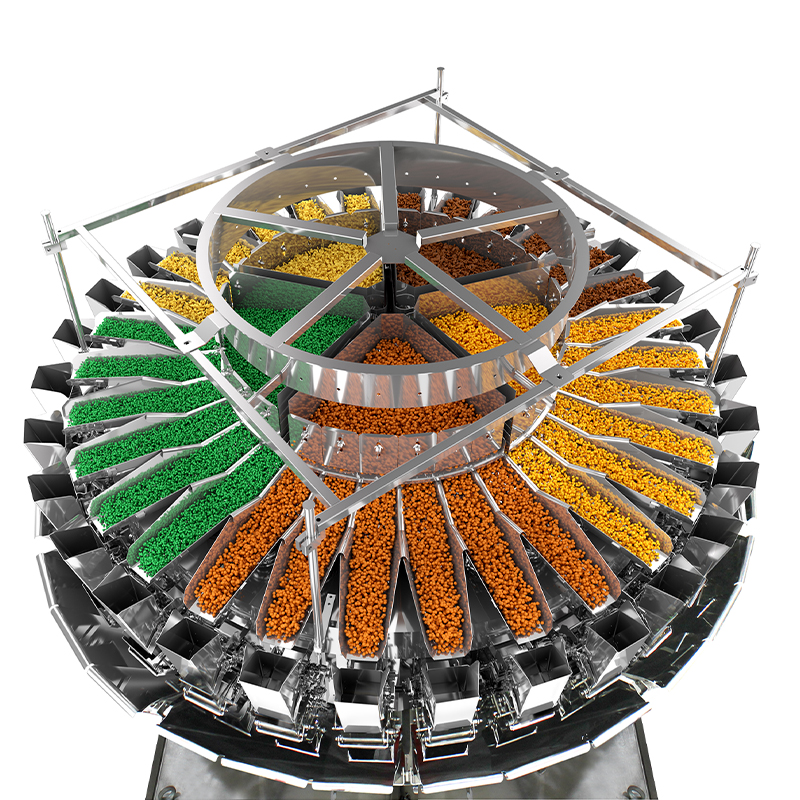

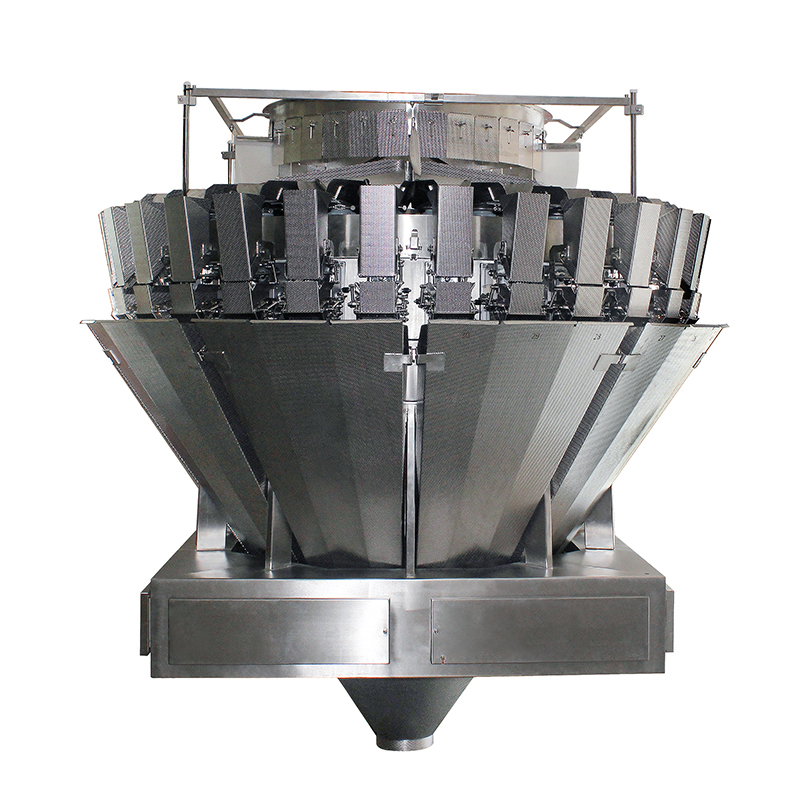

30head weigher to mix 5 in 1.
Applications:
The Mix Series are specially designed for dosing 2 upto 5 different ingredients into 1 pack, or into 2 upto 5 packs.
For example, you can use a 30head weigher to dose:
-5 different ingredients in to 1 pack,
-5 different ingredients into 5 packs,
-1 ingredients into 5 packs.
Our Features:
-User friendly design, smart functions!
-Very stable quality with good performance!
-Use memory hoppers to increase packaging capacity and improve dosing accuracy.
-Whole machine is made of stainless steel 304. Hense long uselife and high sanitary!
-Advanced control system made of MCU G4.0, CANbus control!
-Compensation function to ensure high accuracy!
-When there is lack of products, this weigher will stop automatically, when there comes enough products, the weigher will start to work again automatically!
Specifications:

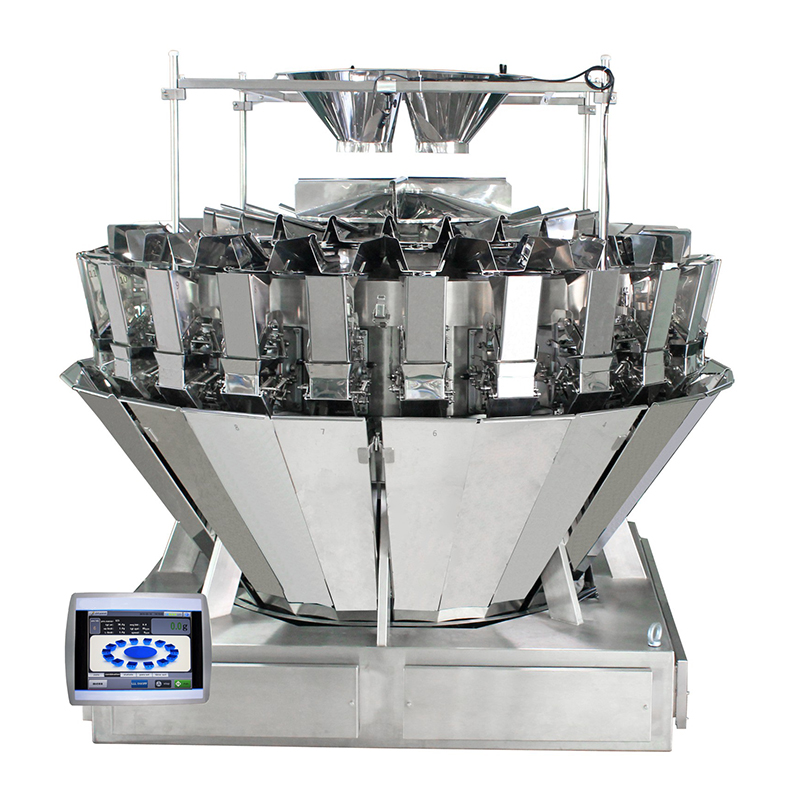

Item | High Speed 18-Head Weigher With Memory Hopper | 24 Heads Blending Weigher With Memory Hopper | 30 Heads Blending Weigher With Memory Hopper |
Model | AT18H-19 | AT24H-19 | AT30H-19 |
Generation | 4.0G Plus | 4.0G Plus | 4.0G Plus |
Weighing Range | 15g~500g | 15g~500g | 15g~500g |
Max.speed | 60 WPM | 60 WPM | 60 WPM |
Power Supply | 220V,50/60HZ,3kW | 220V,50/60HZ,4.0kW | 220V,50/60HZ,4.5kW |
Hopper Volume | 0.8L | 0.8L | 0.8L |
Monitor | 10.4 inches color touch screen | ||
Dimension( mm) | 2000×1550×1700 | 1966×1966×1584 | 2270×2270×2188 |
